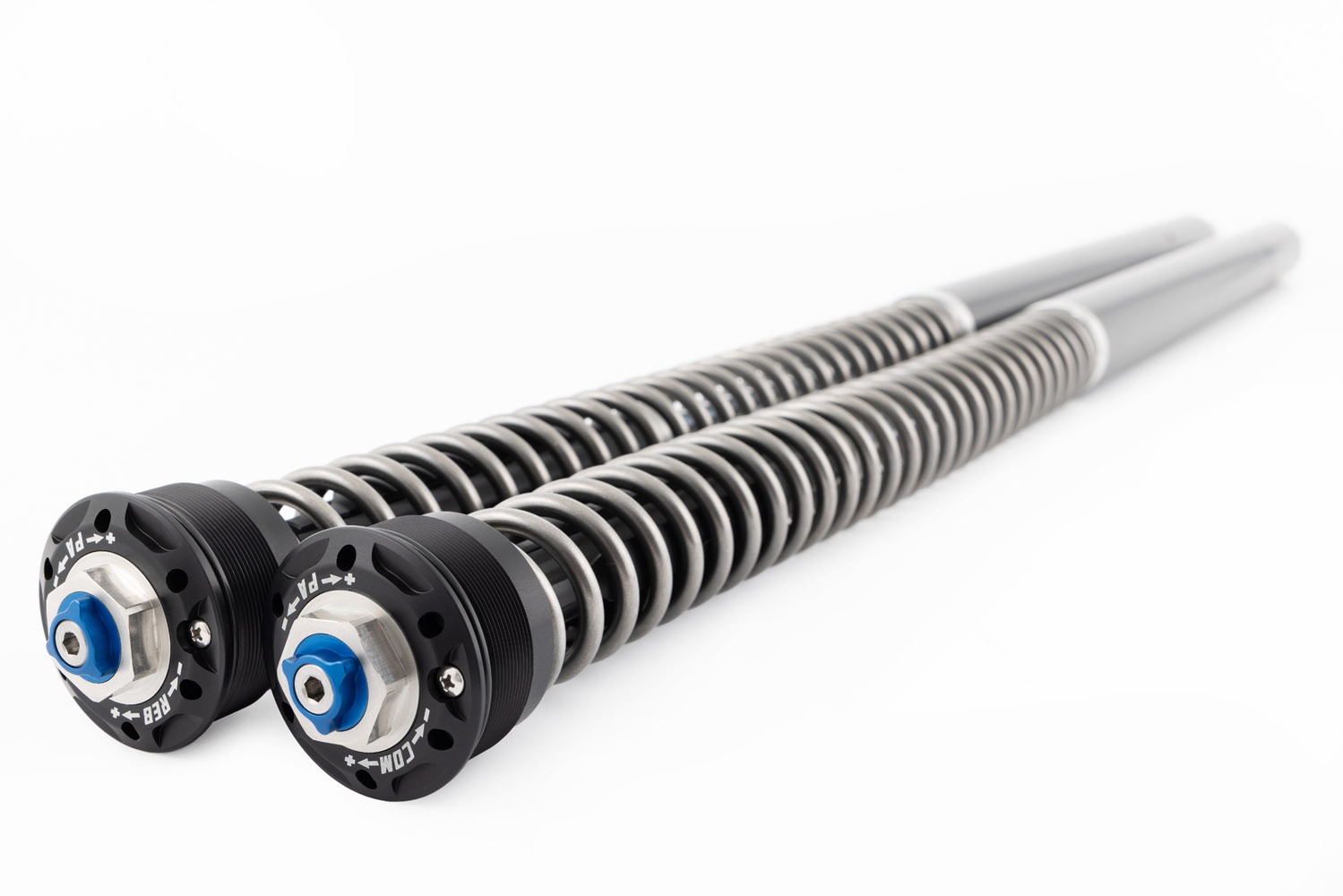

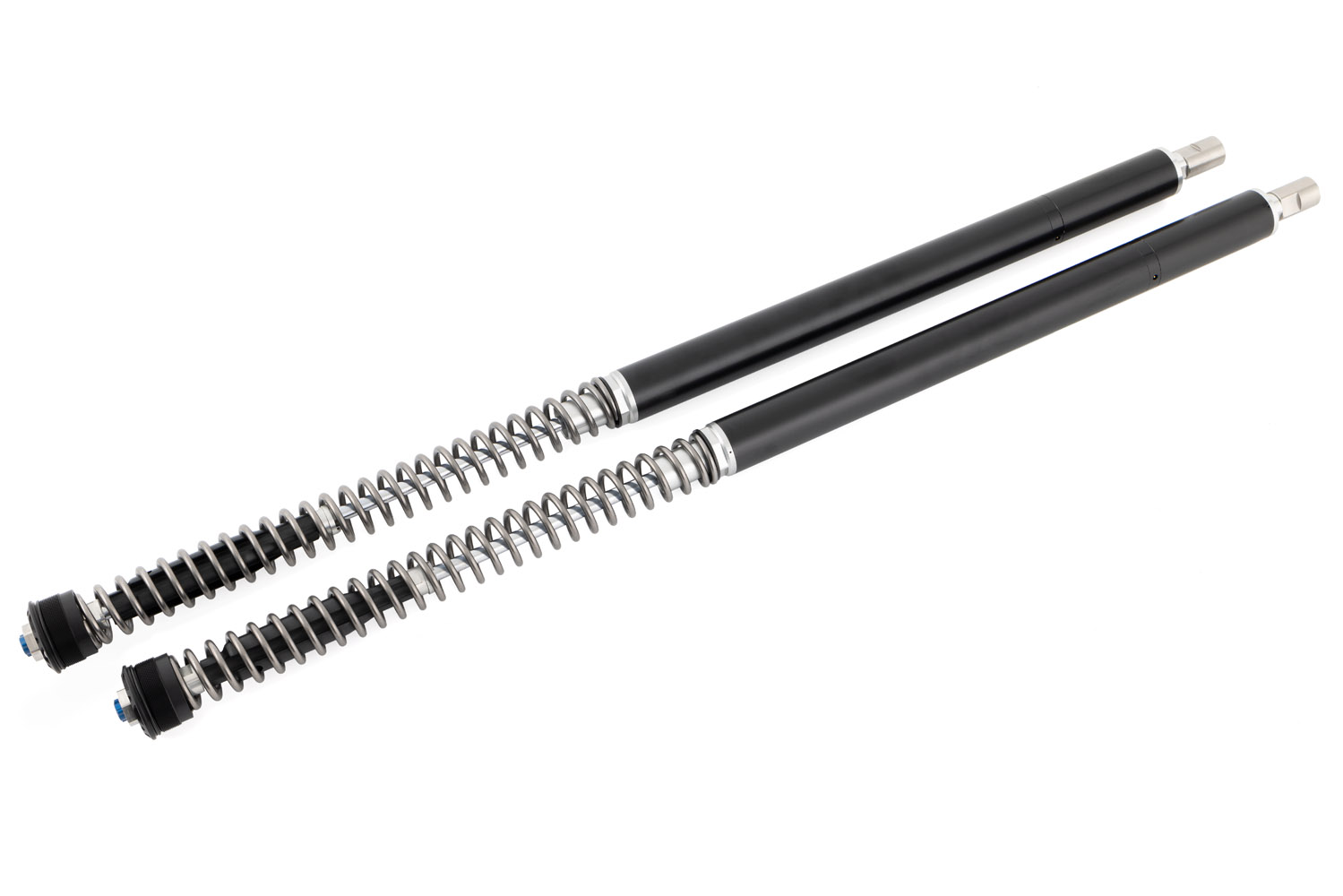

Wunderlich Suspension Cartridge C4 - High +35mm - front
Facts and Product Features of Wunderlich Suspension powered by TracTive C4 Cartridge Sets

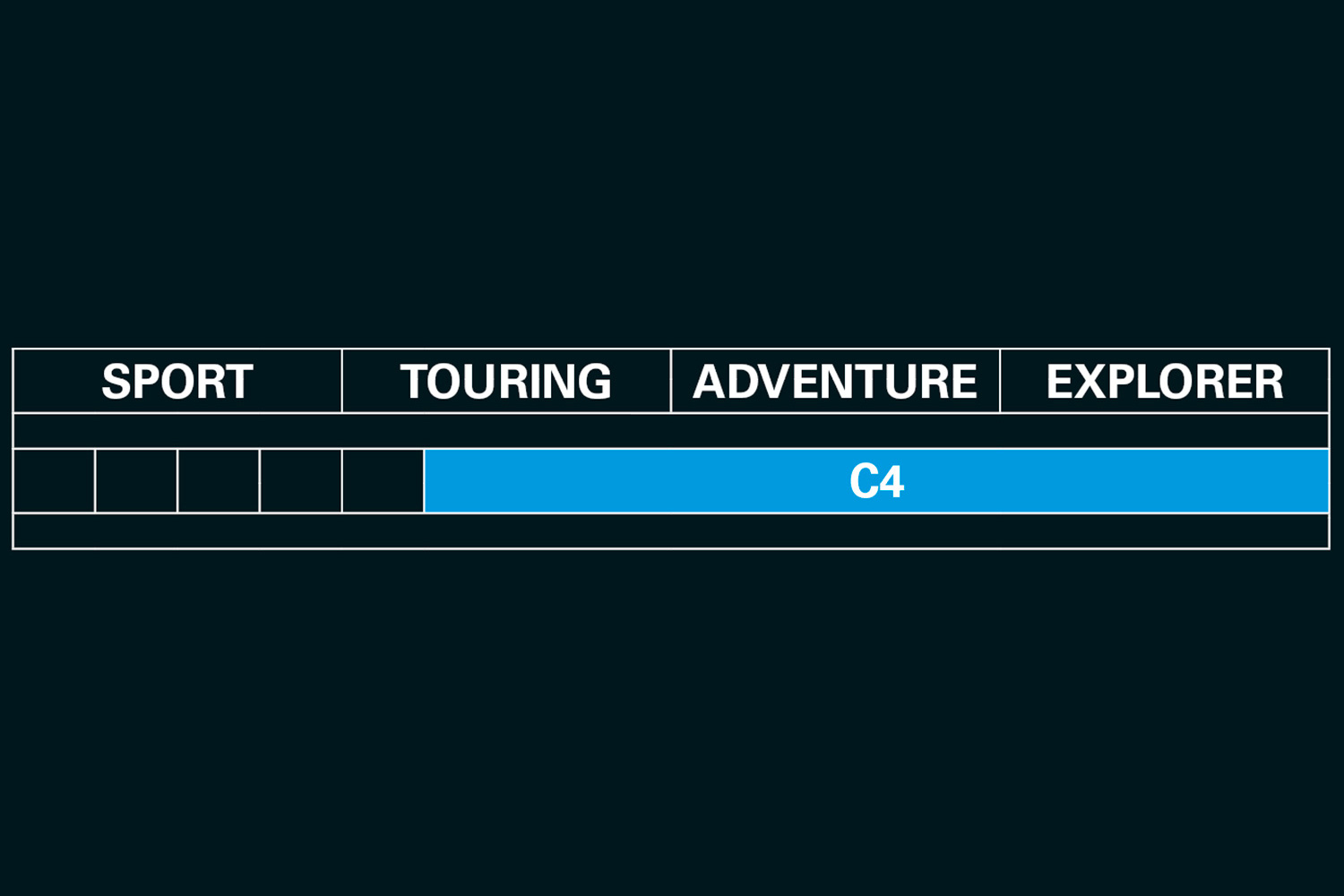

High-performance cartridge set of the latest generation as an upgrade or replacement for the stock suspension. Designed to meet the high demands of discerning adventure riders who frequently go off-road, touring riders who regularly carry heavy loads, and for riders who seek extra safety reserves. With the Hydro-Stop, a second damping stage that reduces the risk of bottoming out.
We select the spring rate of the cartridge based on your personal riding profile specifications.
- Damping Characteristics
- Our cartridge sets are specially developed for each vehicle and application, offering high performance and impressive reserves
- The well-balanced, sensitive damping behavior of our suspension components ensures neutral and predictable handling, increasing confidence in your own motorcycle and enhancing personal riding pleasure
- The cartridges excel with outstanding transparent feedback, optimizing tire-road grip, wheel control, and stability while reducing tire wear

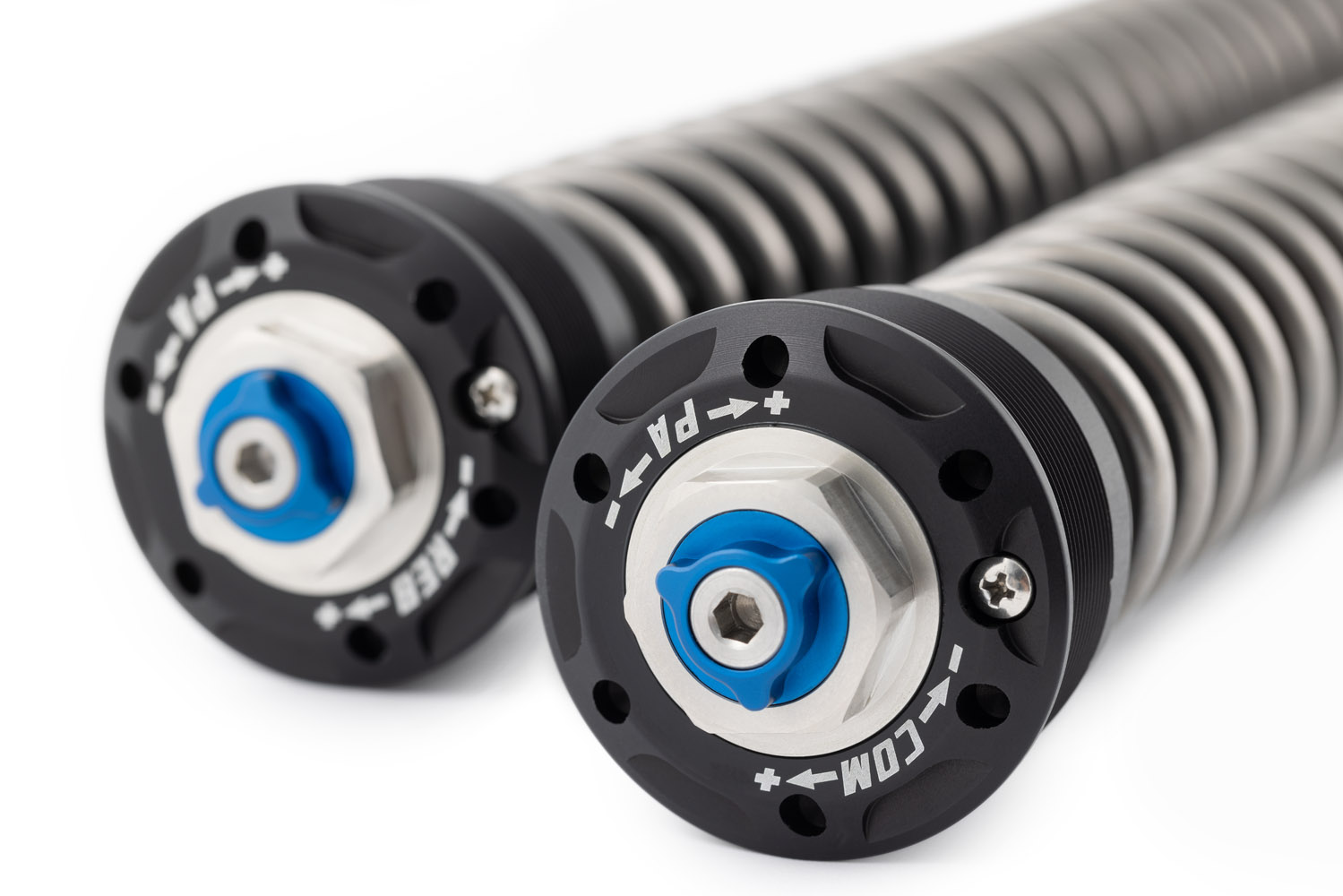

- The rebound and compression damping adjustment with 18 clicks allows individual fine-tuning of damping with the suspension tool
- To achieve optimal responsiveness,
- the oil channels are generously dimensioned to minimize oil flow resistance
- we use pistons with a large diameter (35 mm piston - the largest on the market)
- as well as low-friction seals and special shim stacks
- The cartridge set is equipped with a so-called Hydro-Stop to prevent harsh bottoming out, where a second integrated damping piston forms an additional damping stage at high compression speeds
- The options of rebound and compression damping adjustment in combination with the Hydro-Stop reduce the risk of frame- and fork overloading, simultaneously increasing comfort and safety – not only off-road
- The closed aluminum cartridge housings support thermal stability and performance of the system through optimal heat dissipation
- The generous quantity of oil used ensures
- low, optimal oil operating temperature
- resulting in stable performance at the highest level
- and extended lifespan of both the damper and oil
- Spring Characteristics and Preload
- Manual spring preload adjustment: The spring preload can be adjusted using the included suspension tool
- The generous adjustment range can compensate for a wide range of load conditions
- Tuning
- Wunderlich Suspension for high demands
- Customization
- We select the spring rate of the springs based on your personal riding profile specifications: After choosing your cartridge set, simply determine your personal specifications during the ordering process. These serve as the basis for selecting the appropriate spring for you
- Maintenance
- Each cartridge can be professionally serviced at the Wunderlich Suspension Center

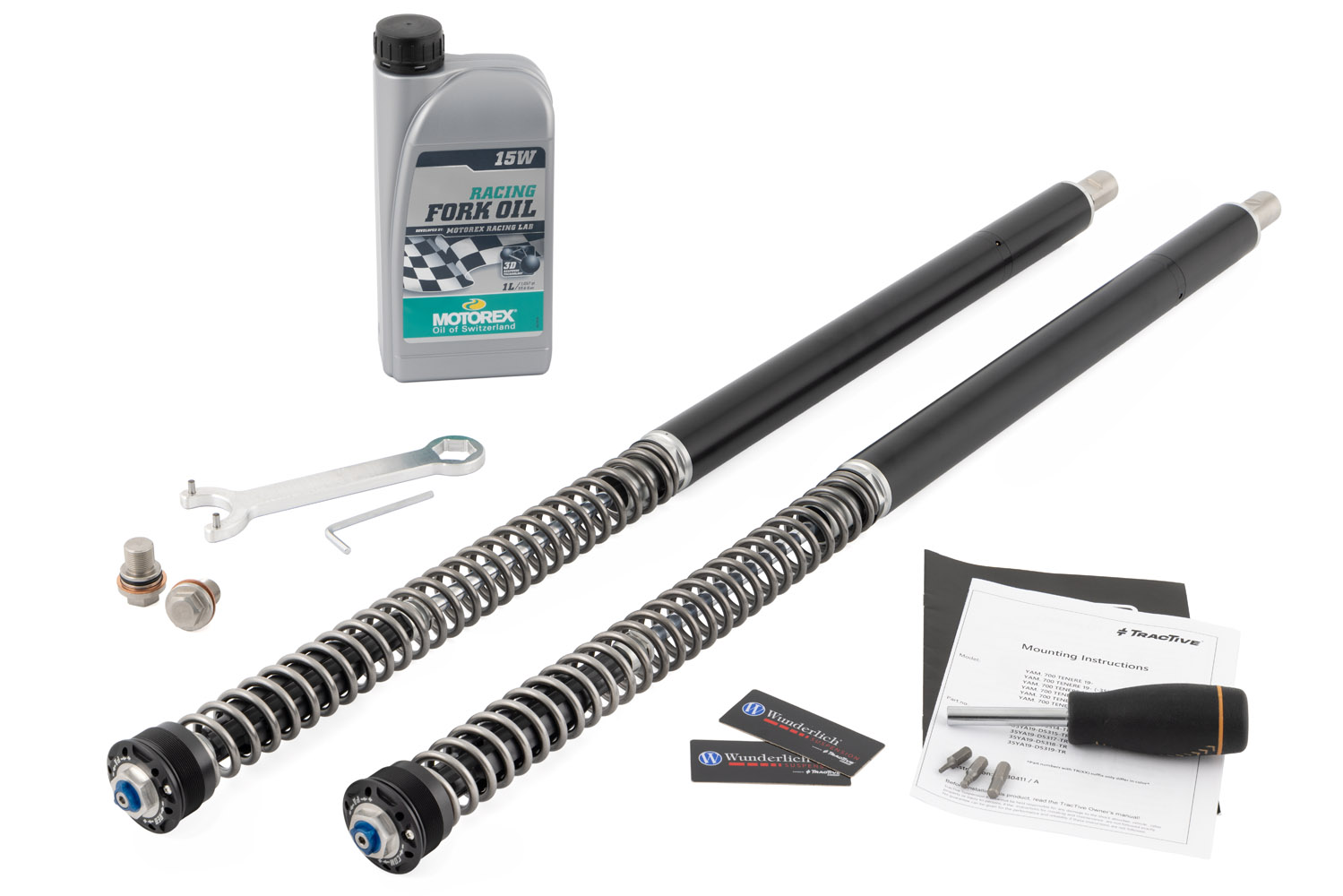

- The suspension tool is included in the scope of delivery
Technical Specifications
- Material
- The cartridge housings are precisely manufactured from high-quality aluminium
- Special Features
- Hydro-Stop to reduce the risk of bottoming out
- Closed cartridge system
- Processing Quality
- We exclusively use highly durable components such as micro-machined, inductively hardened, heat-treated 42CrMo piston rods, high-quality bearings, stainless steel bushes, and low-friction seals
- Dimensions
- Piston diameter 35 mm
- Piston rod diameter 10 mm
- Spring Preload Adjustment
- Manual
- Installation Location
- Front fork
Your Wunderlich Advantages
- Wunderlich product. Small series. Handcrafted.
- Wunderlich design. Functional and integrated.
- Tested by Wunderlich
- Made in Europe
- 5-year warranty when maintenance intervals of 24 months are observed
Without ABE, comes with German firmness certificate for individuel approval by TÜV, Dekra or similar.
Manufacturer: | BMW |
---|---|
Variant: | High +35mm |
Product type: | Fahrwerke |
Vehicle height: | High +35mm |
Color: | front |
